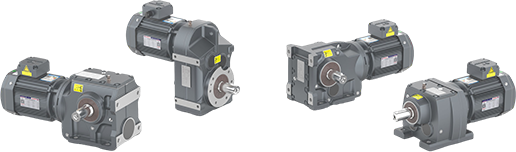

WXK Helical Bevel Gear Motor

Overview
Technical Information
  • Wide power range: 0.12-200kW
  • Sufficient power, high efficiency and low noise
  • Wide application, easy operation and flexible installation
  • High performance, high load resistance
Power 0.12-200kW
Voltage Single phase 110V/220V, 3 phase 220V/380V/415V/440V/660V/690V (Customizable)
Frequency 50/60Hz
Efficiency IE2，IE3，IE4，IE5
Insulation level F (155℃)
Protection grade IP55
Lubrication Synthetic oil, mineral oil
Gearbox size 37,47,57,67,77,87,97,107,127,157,167,187
Features
Parameters
Directory
Features
  • Strong Versatility
    Wide range of ratio and power
  • 20CrMnTi Gear+Carburizing
    Strong carrying capacity, low noise and long service life
  • HT200/HT250 Gearbox
    Good rigidity and high compressive strength
  • Synthetic Oil
    High/low temperature resistance, long service life






WXK Common Models

K... Foot mounted
KA...B Foot mounted with hollow shaft
KH...B Foot mounted with hollow shaft and shrink disk
KV...B Foot mounted with splined hollow shaft
KF... B5 flange mounted
KAF... B5 flange mounted with hollow shaft
KHF... B5 flange mounted with hollow shaft and shrink disk
KVF... B5 flange mounted with splined hollow shaft
KA... Hollow shaft mounted
KH... Hollow shaft with shrink disk
KV... Splined hollow shaft mounted
KAZ... B14 flange mounted with hollow shaft
KHZ... B14 flange mounted with hollow shaft and shrink disk
KVZ... B14 flange mounted with splined hollow shaft
K...AD Solid shaft input
K...AM IEC/AM flange input




Prouduct Advantage


1. Both motor and gearbox are produced by ourselves. Motor power is sufficient, with low temperature rise.
2. Short lead time.
3. Fully equipped with motors, connecting flanges, torque arms, shrink disks, and various types of combination options.
4. 20CrMnTi gear with carburizing technology, effectively improves the bearing capacity of the gear. Gears and gear shafts adopt grinding and cultivation technology, lowering gear operating noise.
5. The output shaft adopts 40Cr+quenching and tempering high-frequency treatment, and the oil seal position adopts radial grinding to improve wear resistance and reduce the risk of oil leakage.
